POWER MANAGEMENT REDEFINED

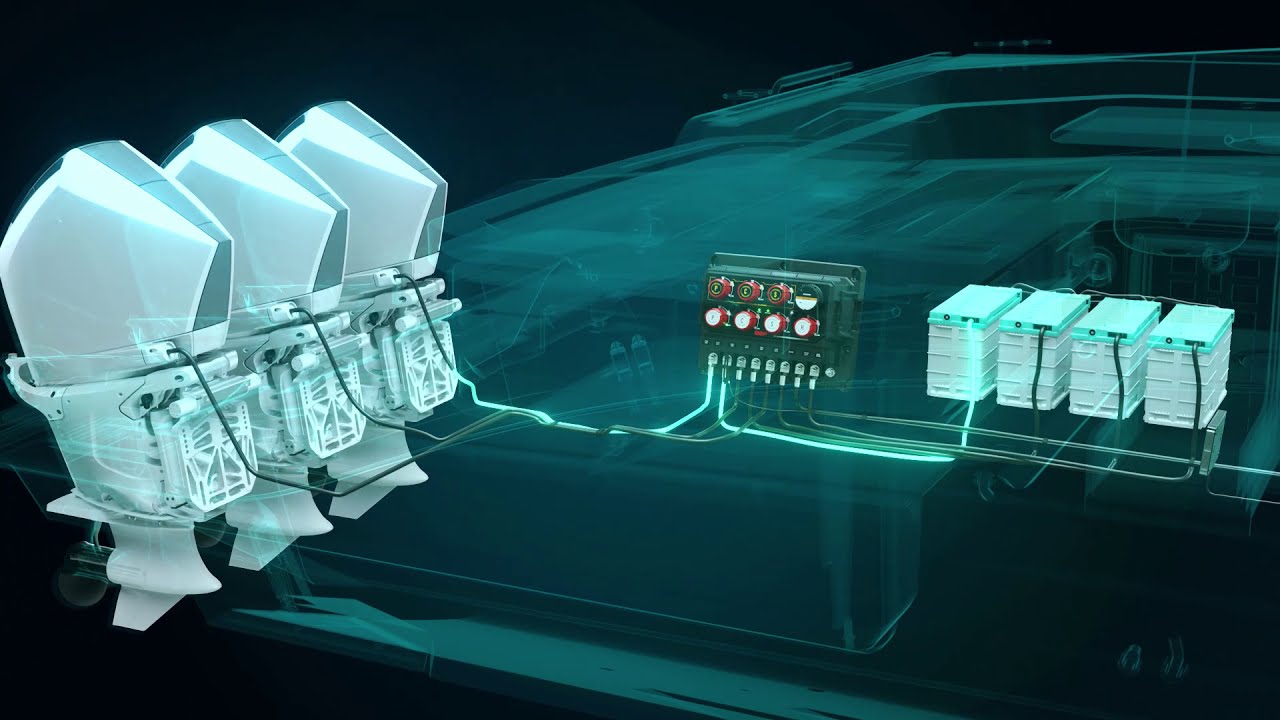

The BEP Smart Battery Hub is a complete all in one battery management system.
Simplify battery management with remotely activated switches, automatic Voltage Sensitive Switching combined with emergency parallel functionality.
Enclosed in a robust easy to install, Ignition Protected IPX7 enclosure.
Monitoring and transmission of battery voltages and full house bank state of charge over NMEA2000 for integration with multi-function displays. Options for two to six engine configurations available.

FEATURES AND BENEFITS
• Monitors and transmits all battery voltages, including house bank state of charge via NMEA2000®.
• IPX7 and Ignition Protected.
• Remotely operated switches via analog inputs or CZone®.
• Ultra low power consumption.
• Full mechanical override of all switches for safety and servicing.

ADDITIONAL FEATURES
• Remotely operated emergency parallel switches.
• Bi-directional Voltage Sensitive Switching with confi gurable cut in and out voltage thresholds.
• Monitor up to 2 tank levels, additional battery voltage, temperature or pressure using industry standard sensors.
• Status LED’s for all switch outputs and fault indication.
• Equipped with advanced core CZone® feature set like load shedding, NMEA2000 switch bank support and many more.
• Support for CZone® logic blocks and data switching USB port allows fi rmware upgrades and full CZone® system updates including confi guration changes over the NMEA2000 network (no PC or adapters required).
• 2 x 10A fused 24 hr house outputs with State of Charge monitoring.
• Stand-alone functionality for systems without CZone®.
