Link Up: Single function gateways to integrate sensor readings to NMEA 2000®
The LinkUp gateways provide an easy method to convert vessel and engine information to NMEA 2000 ®.
Available in 8 different variants: resistive, voltage, LIN and J1939, those can be easily configured through either the embedded NFC-based Airlink interface or NMEA 2000 ® by means of our Configuration Tool.
The ISO 8846:1990 compliance completes the devices by allowing their installation into engine compartments.
GENERAL BENEFITS
Save the money of an overdesigned NMEA 2000® converter
Reduces the wiring, the gateway is installed where needed
Contactless configuration with your smartphone, no expensive HW required!
Powered by NMEA 2000® – no additional power supply
Approved for engine compartment installation according to ISO 8846:1990
| Label | Value |
|---|---|
| LINK UP SERIES | |
| Operating voltage | 6 - 16.5 V |
| Protection class | IP X9/K |
| Power consumption (normal mode) | ≤ 15 mA |
| Power consumption (sleep mode) | ≤ 120 μA |
| Output signal | NMEA 2000® |
| Operating temperature | -40° C to 115° C |
| Flammability | UL94 compliant |
| Compliance | CE, Reach, RoHS, ISO 8846:1990 |
| Housing Material | PC-FR |
| Model | Part Number | Description |
|---|---|---|

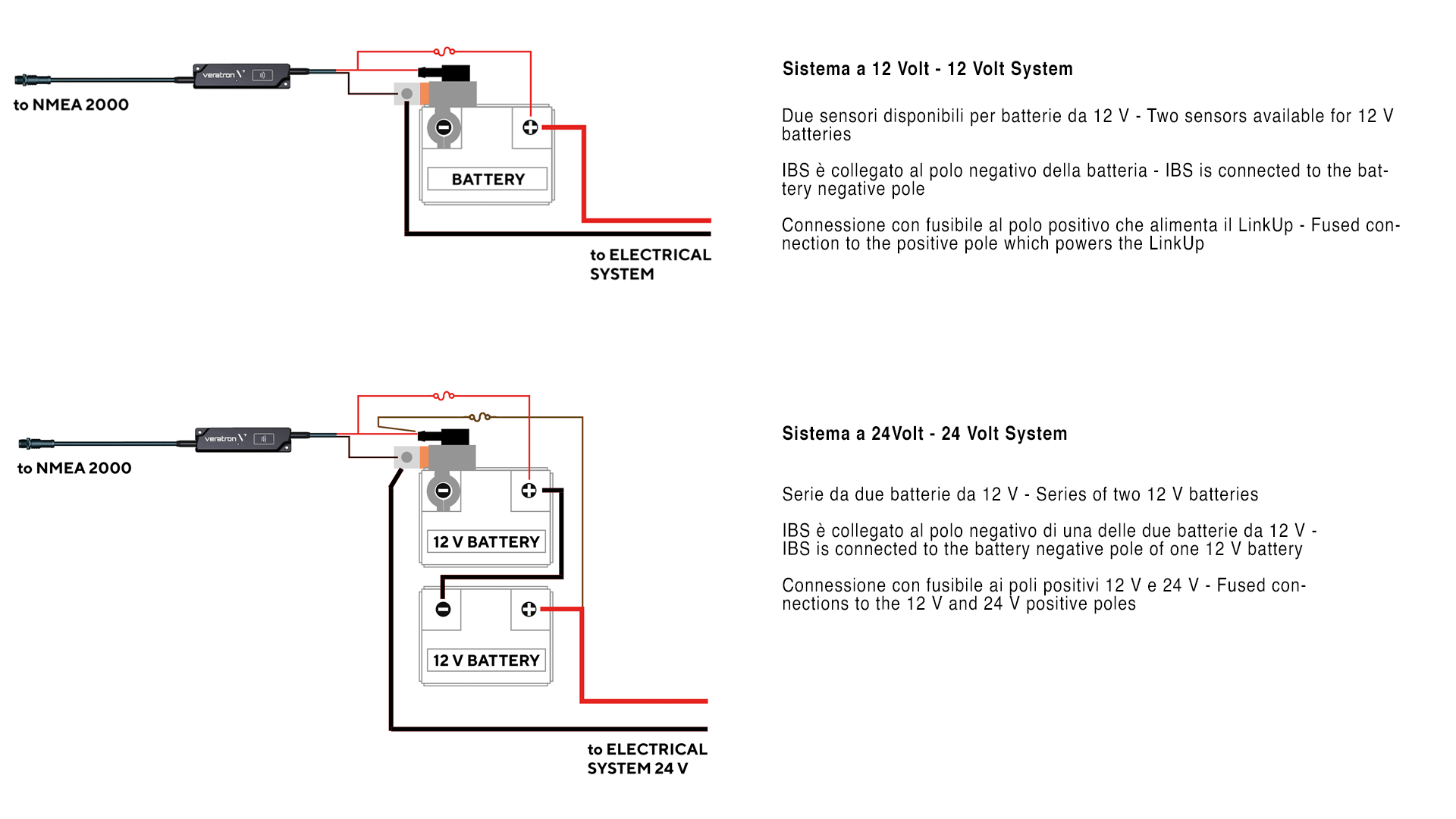

| Link Up Intelligent Battery Sensor (IBS) | ||
| B00042501 | 23411C | 12 V Link Up Intelligent Battery Sensor (IBS) |
| B00042502 | 24843P | 12 V II Link Up Intelligent Battery Sensor (IBS) |
| B00070401 | 23854P | 24 V Link Up Intelligent Battery Sensor (IBS) |
| Link Up Oil Temperature and Pressure | ||
| B00070501 | 21917B | Link Up Oil Temperature and Pressure |
| Link Up J1939 Gateway | ||
| B00042401 | 23560W | codice - Link Up J1939 Gateway |
| B00102701 | 24913J | Volvo Penta adapter cable |
| B00102801 | 24914L | Yanmar adapter cable |
| Link Up Resistive | ||
| B00042201 | 23410A | Link Up Resistive |
| Link Up Pyrometer | ||
| B00042301 | 23559M | Link Up Pyrometer |
