GP1 – WATERPROOF GAUGE SIZE STEREO

GP1 – WATERPROOF GAUGE SIZE STEREO

GP1 – WATERPROOF GAUGE SIZE STEREO • Bluetooth Audio: Easily stream your favorite tunes from your smartphone with Bluetooth Audio […]

GP1 – WATERPROOF GAUGE SIZE STEREO

  • • Bluetooth Audio: Easily stream your favorite tunes from your smartphone with Bluetooth Audio support. View track info including a song’s name, artist, and album information right on the display.
  • • 288W Amplifier: Keep your system going with a 288W amplifier that powers up to 8 speakers or a combination of speakers and subwoofers.
  • • Multi-Environment Protection: Install anywhere with waterproof (rated IP65), UV, and salt/fog resistant protection enabling reliable performance in the toughest environmental conditions.
  • • DSP EQ: Allows common EQ settings to be applied to enhance music content, such as Pop, Classical and Rock or manually adjust bass and treble for a tailored sonic experience.
  • • Variable Brightness: Adjust the display brightness from 100% for normal operation to 30% brightness to reduce screen glare during night time operation.

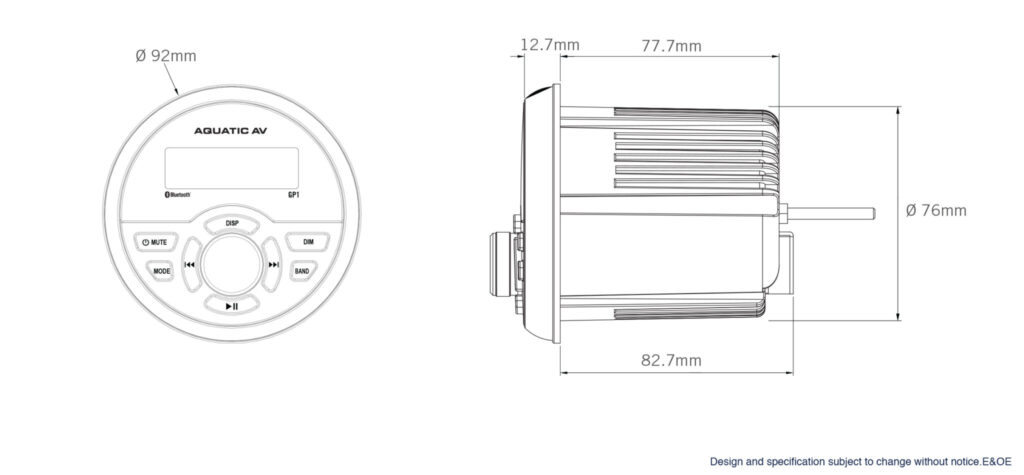

  • • Standard Gauge Size: Our smallest stereo yet, designed to sit alongside standard dash gauges, but still packing a serious Aquatic AV feature set.
  • • USB: Play USB thumb drives with supported audio media and charge USB devices such as smartphones with USB charging.
  • • AM/FM Radio: Listen to your favorite AM and FM radio stations. Save your favorite stations with 18 FM and 12 AM presets available. Compatible with both US and European frequencies.
  • • AUX: Connect devices via stereo RCA cable with input gain of 2V for high performance with all devices.

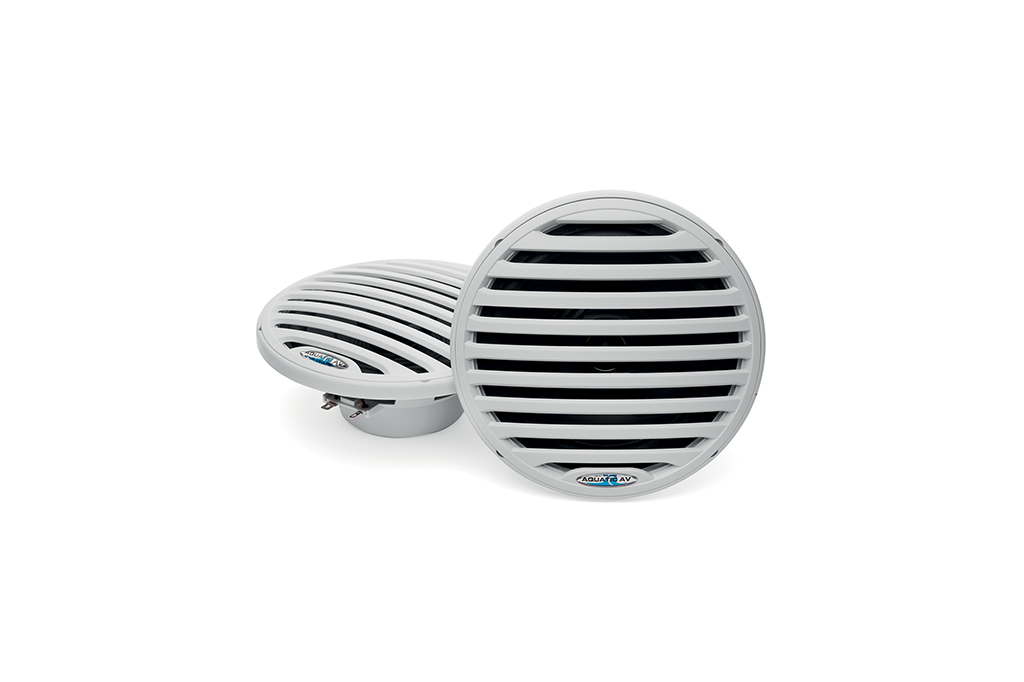

GP1 stereo is also available in kit with a pair of AQ-SPK6.5-4EW speakers:



Label Value
Supported media Bluetooth audio, USB, MP3, AM/FM, AUX
Device Control Via rear USB cable (2,1A)
Display Monochrome TFT with blue backlight
Inputs Bluetooth, 1x USB, 1x stereo pair RCA
Outputs 1x stereo pair RCA Pre-out (2V)
AM/FM tuner 18x FM pre-set & 12x AM pre-set memory. US/Euro frequencies
Power (max) 4x 45W (4 Ohms), 4x 72W (2 Ohms)
Amplifier type Class A/B (2 Ohm stabile)
Output voltage 10.5V - 14.4V DC
Current draw 7A (max) / <3mA (standby)
Waterproof Yes - IP65
UV protection 500hrs stable, ASTM D4329 compliant
Salt/fog protection 500hrs stable, ASTM B117 compliant
Certifications CE, RoHS, WEE, FCC
Additional features Clock display, Stainless Steel mounting hardware

Model Part Number Description
GP1 23889 GP1 stereo
KIT STEREO GP1 22985A KIT STEREO GP1 + 2 AQ-SPK6.5-4EW speakers
