VMH35D VERATRON MARINE DISPLAY • Display IBN hybrid colour: TFT 1,44“ and fix segment (Active area Ø 83mm) optically bonded […]

VMH35D VERATRON MARINE DISPLAY

• Display IBN hybrid colour: TFT 1,44“ and fix segment (Active area Ø 83mm) optically bonded
• Mineral glass front lens
• Silicon keyboard with 2 pushbuttons
• Brushed stainless-steel bezel
• Power supply 9 -36 Volt (12/24 nominal)
• Operating temperature: -30°C to +80°C
• Storage temperature: -40°C to +85°C
• Environmental class protection: IPX7 front and back
• Dual CAN (J1939 and NMEA 2000)
• EasyLink output for VMH 14 satellites
• Customizable start-up logo on display

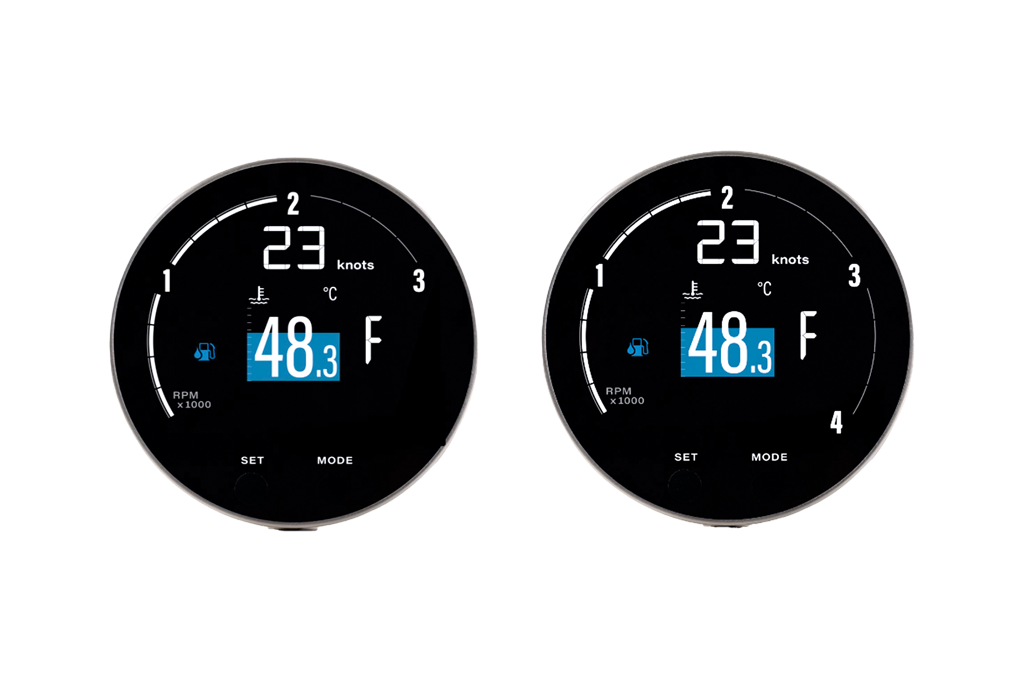

DISPLAY LAYOUT

• Dedicated 10 telltales for diesel application
• RPM dial can support 3000 and 4000 scales
• High-Performance GNSS Receiver, GPS, GLONASS
and Galileo Constellations supported
• IBS Battery sensor input
• NMEA 2000 Gateway embedded
• NMEA 2000 Certified

PRODUCT VARIANTS

VMH 35-D (B00171101 – 25402M): Display for marine diesel inboard engines. GPS embedded, NMEA 2000 interface with gateway, specific screens and alarms for marine application (e.g., Depth, COG, SOG, etc…)

VMH 35-D w/o GPS (B00171201 – 25401K) Display for marine diesel inboard engines. No GPS embedded (second station or second engine), NMEA 2000 interface with gateway, specific screens and alarms for marine application (e.g., Depth, COG, SOG, etc…)



Label Value
Operating voltage 12 V
Voltage range 9 – 16 V
Protection class IP X7
Flammability UL94 compliant
Power consumption ≤ 15 mA (normal mode) ≤ 120 μA (sleep mode)
Dimensions Ø 100 (Ø 85 mm mounting)
Active area Ø 83 mm (optically bonded display)
Central display 1.44”, 128 x 128 Pixel
Lens Mineral glass
Buttons 2 silicon buttons
Ring Brushed stainless steel
Operating temperature - 20 °C to 60 °C
Storage temperature - 30 °C to 80 °C
Plugs Molex MX-150, 12 pins DeviceNet M12, 5 pins

GPS DATA

Navigation system

GPS, GLONASS, Galileo

Update rate

10 Hz

Channels

72

Tracking sensitivity

-165 dBm

Time to first fix (hot
start)

1 s

Time to first fix (cold
start)

30 s

Position accuracy

2.5 m

Velocity accuracy

0.05 m/s

Heading accuracy

0.3 °

GPS DATA

Model Part Number Description
B00171101 25402M VMH 35-D
B00171201 25401K VMH 35-D w/o GPS
