VL VOLTMETER diameter 52 mm
The Viewline voltmeter displays the status of generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly. Even potential deep discharges can be detected.
• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Current consumption < 150 mA, with integrated warning light (LED)
• 90° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
Available with 12 or 24 V
PACKAGE CONTENTS
Voltmeter gauge, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
Label | Value |
---|---|
Installation diameter | 52 mm |
Installation depth | 50 mm |
Display angle | 90° |
Front side protection rating | IP67 |
Voltage | 12V o 24V |
VOLTMETER
VDO SKU |
SKU |
COLOR |
VOLTAGE |
---|---|---|---|
A2C59512545 |
60285AA |
Black |
8 - 16 V |
A2C59512546 |
60286BA |
White |
8 - 16 V |
A2C59512458 |
60287CA |
Black |
18 - 32 V |

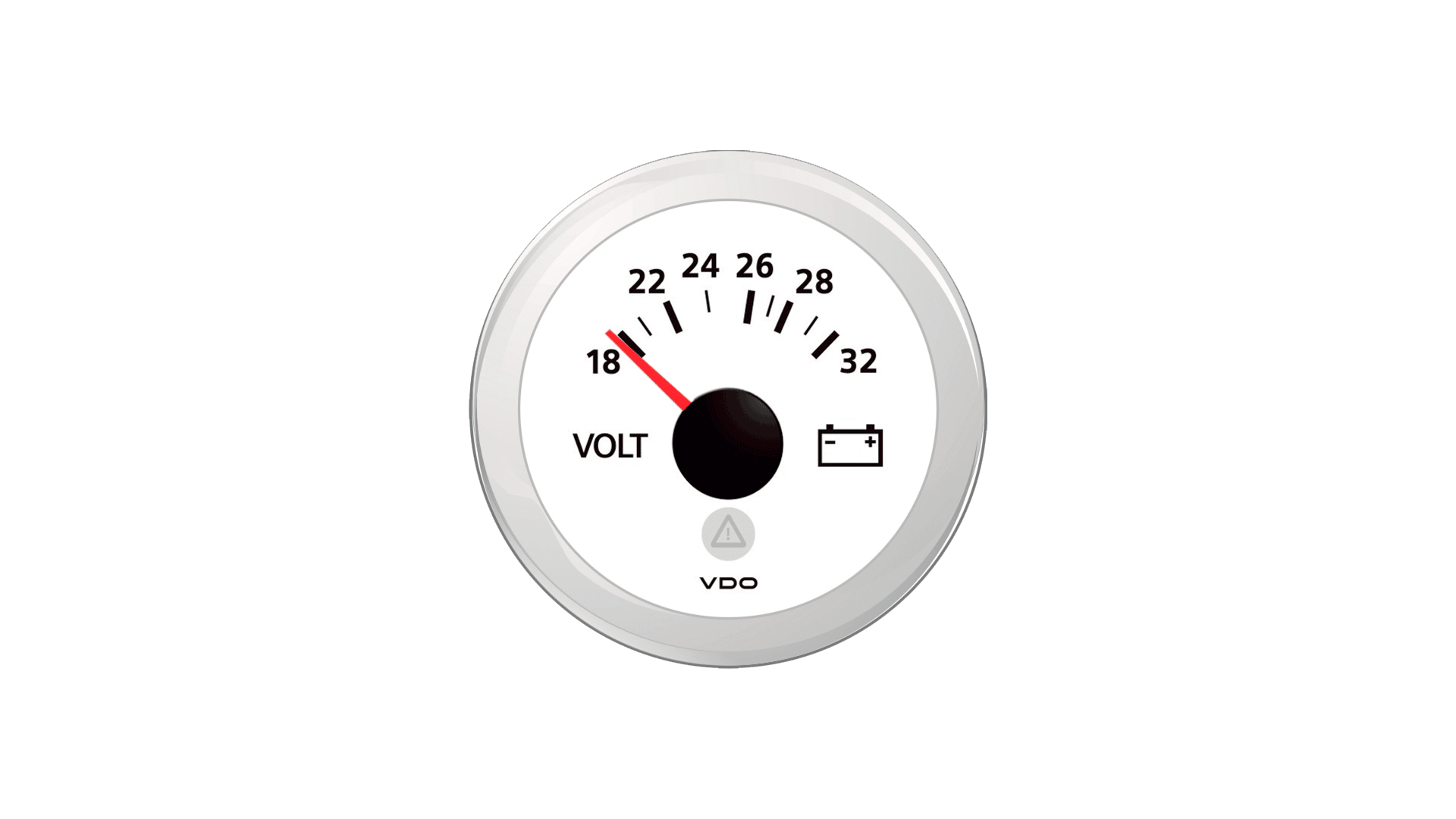

A2C59512459 |
60288FA |
White |
18 - 32 V |
