VL TRIM ANGLE INDICATOR 52 mm

VL TRIM ANGLE INDICATOR 52 mm

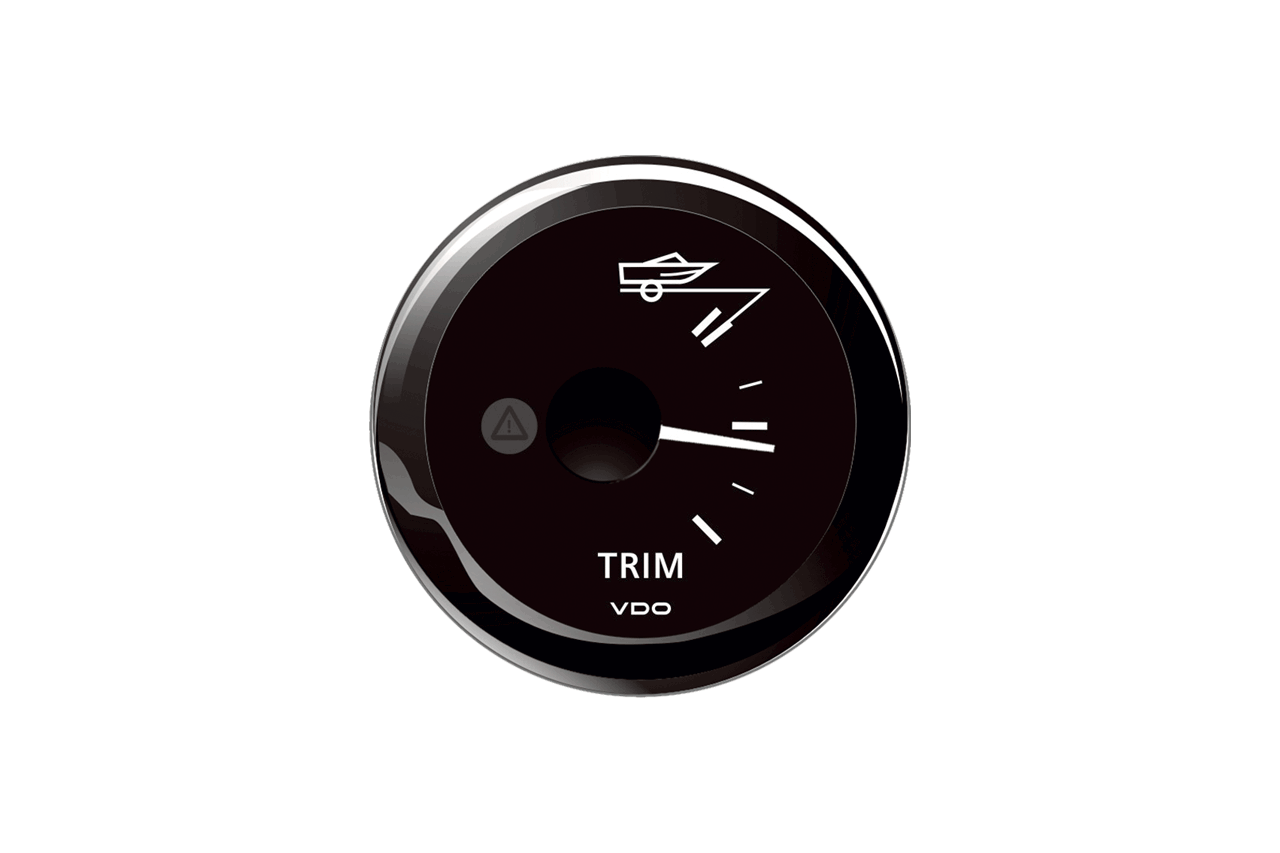

VL TRIM ANGLE INDICATOR (OUTBOARD POSITION) diameter 52 mm The Viewline trim gauge provides information about the position of the […]

VL TRIM ANGLE INDICATOR (OUTBOARD POSITION) diameter 52 mm

The Viewline trim gauge provides information about the position of the engine in relation to the boat‘s stern.
In this way the skipper always knows whether the drive is in the raised or lowered position. He can also optimise the boat‘s trim.

• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard Ω values
• 90° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67

PACKAGE CONTENTS

Trim gauge, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions

Label Value
Installation diameter 52 mm
Installation depth 50 mm
Display angle 90°
Front side protection rating IP67

TRIM ANGLE INDICATOR

VDOSKU

SKU

COLOR

RANGE

VOLTAGE

INPUT

A2C59514180

60283YA

Black

UP - Down

8 - 32 V

167 - 10 Ω

A2C59514244

60284ZA

White

UP - Down

8 - 32 V

167 - 10 Ω
