VL TACHOMETER WITH LCD – Ø 85 mm

Gauge to indicate engine revolution, engine hours, voltage and clock.
The Viewline rev counter with or without operating hours counter (OHC) can be connected to conventional marine engines (no data bus).
• Indication error < 2.5 % over the entire display range
• Current consumption < 175 mA, with warning light (LED)
• Volatage: 8 – 32 V
• Output for acoustic alert (option)
• Various sensor inputs
• LC display size 37 mm x 11 mm
• Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine
programming tool)
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm installation diameter
• 50 mm installation depth
• Input: W, Ind, Hall, Generator

PACKAGE CONTENTS

Tachometer gauge, adapter cable 8 pole, adapter cable 14 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions

Label Value
Diameter 85 mm
Color Black, white
Range rpm from 3000 to 8000 rpm
Voltage 8 - 32 V
LC display size 37 x 11 mm
Reverse polarity protection Yes
Front side protection IP67
Installation depth 50 mm
Input W, Ind, Hall, Generatore

Model Part Number Description
A2C59512390 60212CA Tachometer with LCD - 3000 rpm - Black
A2C59512391 60214EA Tachometer with LCD - 4000 rpm - Black
A2C59512392 60216GA Tachometer with LCD - 5000 rpm - Black
A2C59512393 60218KA Tachometer with LCD - 6000 rpm - Black
A2C59512394 60220CA Tachometer with LCD - 7000 rpm - Black
A2C59512395 60222EA Tachometer with LCD - 8000 rpm - Black
A2C59512396 60213DA Tachometer with LCD - 3000 rpm - White
A2C59512397 60215FA Tachometer with LCD - 4000 rpm - White

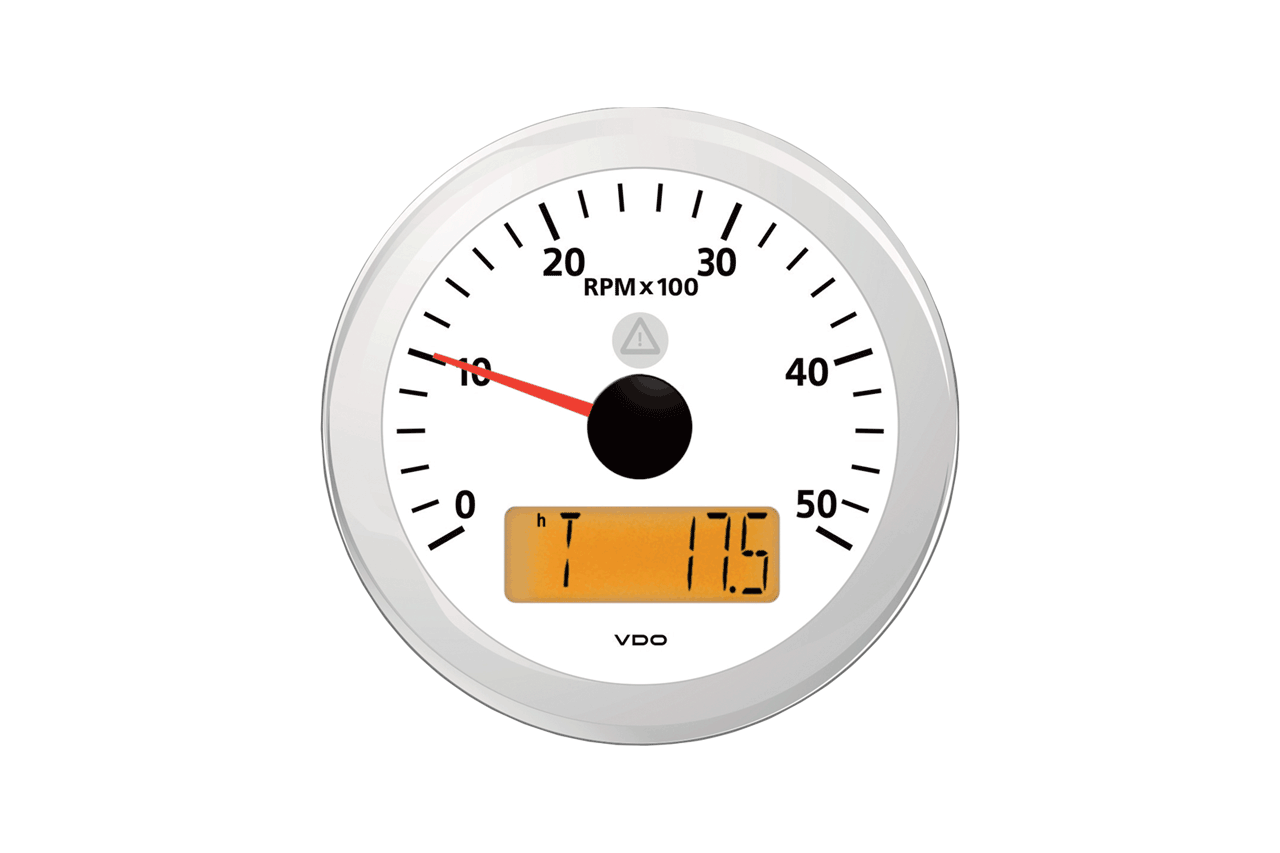

A2C59512398 60217HA Tachometer with LCD - 5000 rpm - White
A2C59512399 60219LA Tachometer with LCD - 6000 rpm - White
A2C59512400 60221DA Tachometer with LCD - 7000 rpm - White
A2C59512401 60223FA Tachometer with LCD - 8000 rpm - White
