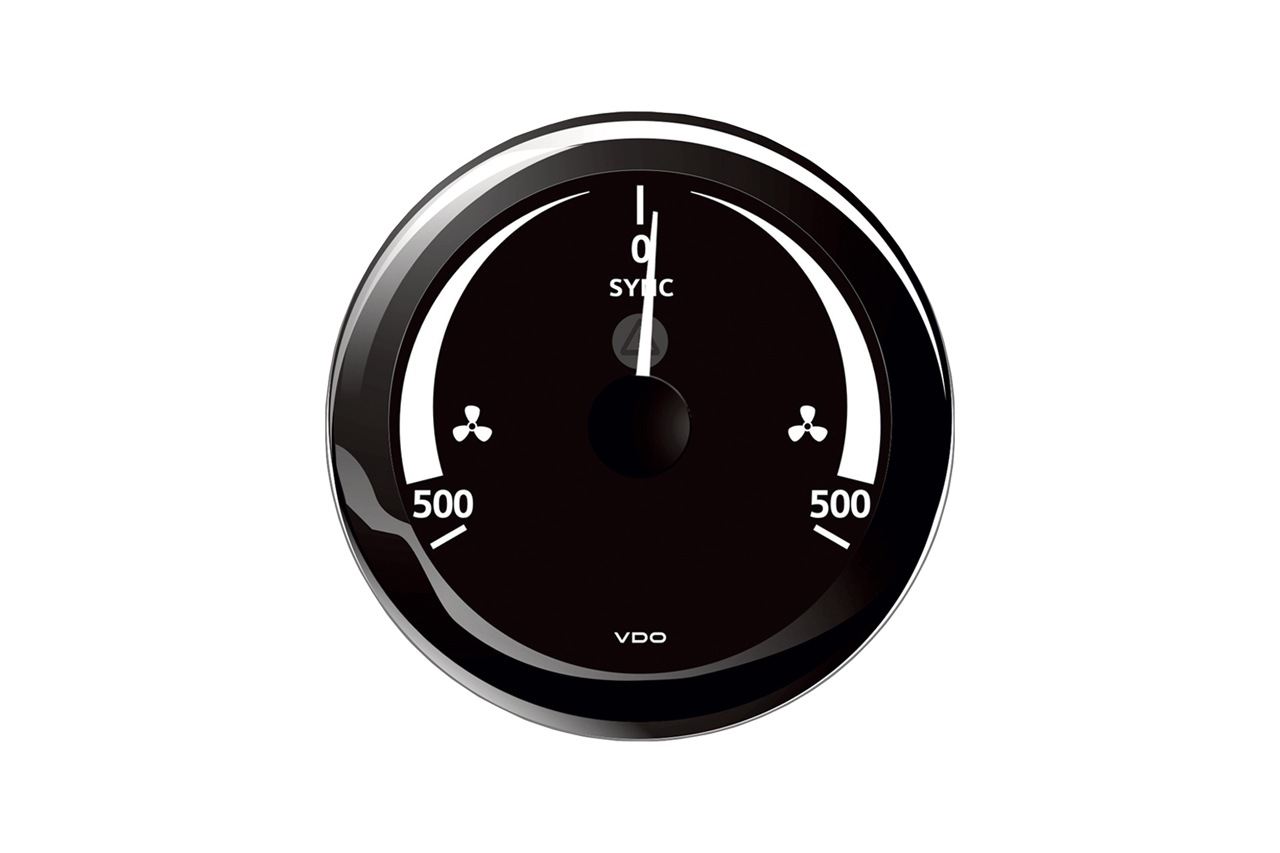

VL SYNCRONIZER – Ø 85mm
On pleasure boats with twin engine installations, the ViewLine synchronizer is an indispensable aid to ensuring correct synchronized running of both units.
• 8 and 14 pole Tyco / Hirschmann bush housing
• Accuracy +/- 2.5 %
• Current consumption 150 mA
• 2nd frequency input
• Connection for external alerts (option)
• Number of pulses programmable via dip switch
or PC software (ViewLine programming tool)
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm installation diameter
• 50 mm installation depth
PACKAGE CONTENTS
Synchronizer gauge, adapter cable 8 pole, adapter cable 14 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
Label | Value |
---|---|
Diameter | 85 mm |
Color | Black, white |
Range rpm | -500 / +500 rpm |
Voltage | 8-32 V |
Input | W,1, Ind |
Installation depth | 50 mm |
Front side protection rating | IP67 |
Model | Part Number | Description |
---|---|---|
A2C59512402 | 60224GA | Syncronizer -500 / +500 rpm - black |
A2C59512403 | 60225ha | Syncronizer -500 / +500 rpm - white |
