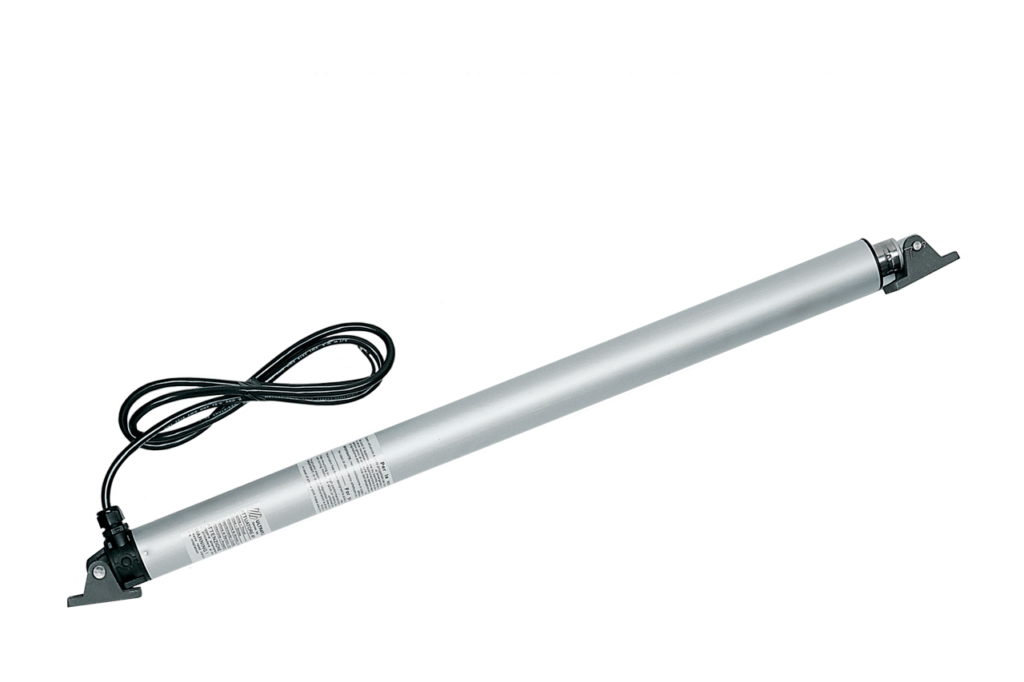

Ulysses series electrical hatch lifters

Ulysses series electrical hatch lifters

TECHNICAL FEATURES Suitable for single installation only Max thrust and pull: 650N (65 kg – 144 lbs) Supplied with 2 […]

TECHNICAL FEATURES

Suitable for single installation only

Max thrust and pull: 650N (65 kg – 144 lbs)

  • Supplied with 2 mounting brackets complete with pins and nuts
  • Aluminum stem
  • Overload protection and limit stop by current limitation
  • IP 65 protection

Speed:

  • 12 Volt version: – 5 mm / sec no-load, 4 mm / sec with maximum load
  • 24 Volt version: – 8 mm / sec no-load, 6 mm / sec with maximum load
  • Absorption: 2A at 12V, 1A at 24V

INSTALLATION
• The following equation will help you to calculate the maximum strength (Fmax) required from the hatch lifter to open your hatch, knowing the dimensions and weight of the hatch and the position of the mounting brackets.



Maximum load (Fmax):

650 N (65 kg – 144 lbs) single installation only, both pull and push

COMPONENTS DESCRIPTION

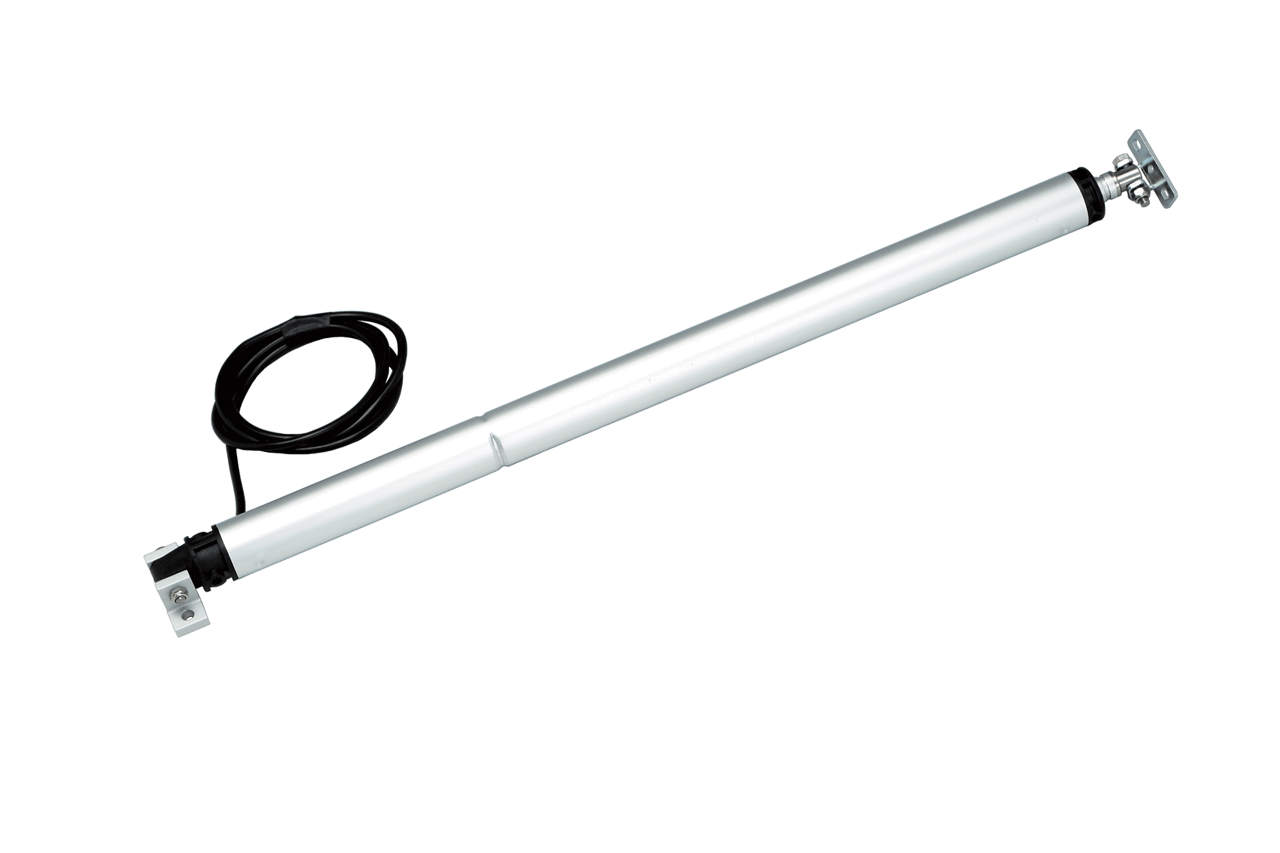

• nº 1 Ulysses actuator (Fig.1)
• no dual installation
• External diameter: 34 mm (1.3”)
• Maximum oscillation range: 180°
Power supply cable:
• AV and ULYSSES actuators are supplied with 5 ft (1,5 m) of electrical cable
Warning: in case of longer cable length required, do not substitute the existing harness, but make a junction following the instructions supplied with the product.

position (optional)
Fuse (not supplied)
Battery (not supplied)

COMPONENTS AVAILABLE ON REQUEST:

SW20  Unipolar momentary switch

BR / UL  Spare fixing bracket

Label Value
Installation Single
Ram Alluminium
Speed - 12 Volt version 5 mm/sec no load applied; 4 mm/sec maximum load
Speed - 24 Volt version 8 mm/sec no load applied; 6 mm/sec maximum load
Pull and push maximum load 650N (65kg - 144lbs)
Current absorption 2A at 12V; 1A at 24V
External diameter 34 mm (1.3")
Protection IP65

Ulysses series electrical hatch lifters - technical features

MODEL

SKU

VOLT

STROKE

LENGTH A (full closed actuator)

EXTERNAL Ø

ULYSSES 1812

40924Q

12V DC

180 mm (7”)

515 mm (20.3”)

34 mm (1.3")

ULYSSES 1824

40926S

24V DC

180 mm (7”)

515 mm (20.3”)

34 mm (1.3")

ULYSSES 3012

40925R

12V DC

300 mm (12”)

635 mm (25.0”)

34 mm (1.3")

ULYSSES 3024

40927T

24V DC

300 mm (12”)

635 mm (25.0”)

34 mm (1.3")

Ulysses series electrical hatch lifters - technical features

Model Part Number Description
SW20 69116J Unipolar momentary switch
BR/UL 35697P Spare fixing bracket
