MORNINGSTAR® CHARGE CONTROLLERS – SUNSAVER DUO™

MORNINGSTAR® CHARGE CONTROLLERS – SUNSAVER DUO™

SunSaver DUO™ is a two battery solar controller with remote adjustable meter FEATURES • Will charge two separate and isolated […]

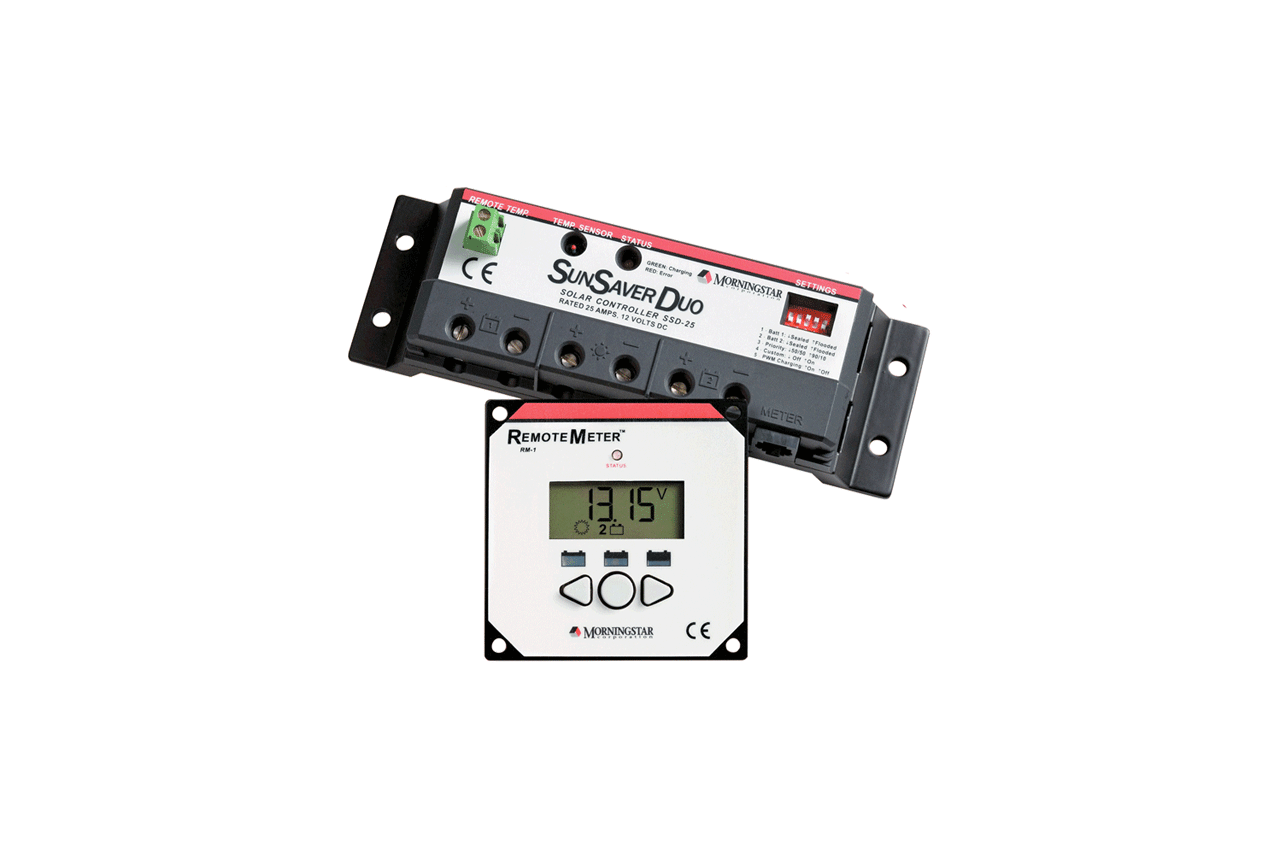

SunSaver DUO™ is a two battery solar controller with remote adjustable meter

FEATURES

  • • Will charge two separate and isolated batteries at the same time based on user selectable priorities
  • • Includes a backlit remote meter with LED display which may be mounted in or on a wall and displays information about the solar power system
  • • User adjustable via DIP switch or PC connection
  • • Two battery charging eliminates the added cost of two separate solar charging systems and the need for isolation between the batteries
  • • Will not be damaged by wiring mistakes during installation
  • • Epoxy encapsulated for environmental protection
  • • Options: Remote Temperature Sensor
Label Value
Model SunSaver DUO™
Part No. 66129 C
Battery Voltage 12 Volt
Rated Solar Input 25 Amp
Max Solar Voltage 30 Volt
Max Battery Voltage 15 Volt
Self Consumption 25 mA (regolatore e indicatore)
Operating Ambient Temperature -40°C a +40°C
Dimensions 170x56x41 mm
Meter Hole Size 76 mm
Largest Wire 16 mm²
Weight 0,26 kg
