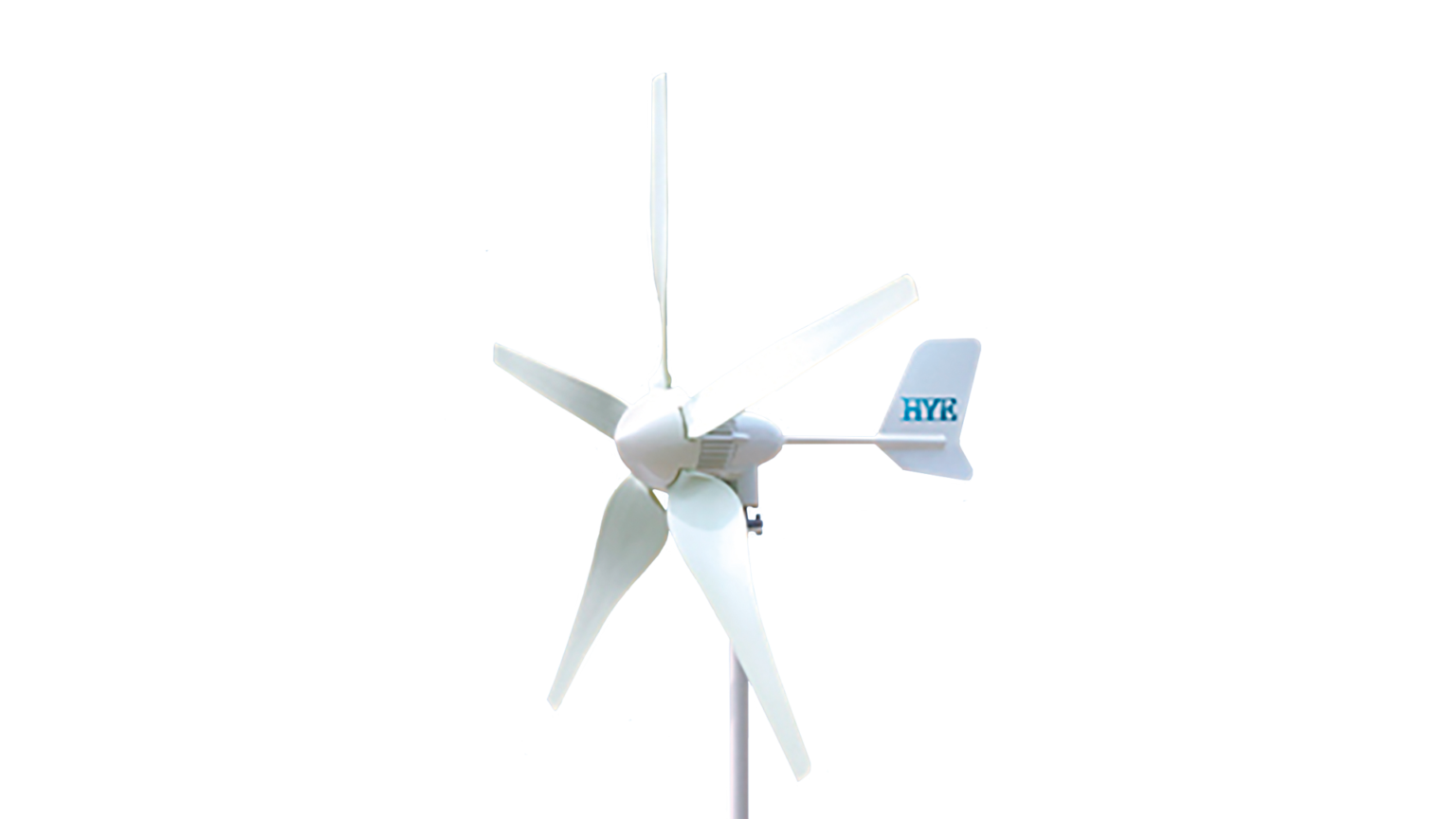

WIND GENERATORS 5 BLADE Features: – Equipped with electromagnetic control of the blade speed and with aerodynamic clutch of the […]

WIND GENERATORS 5 BLADE

Features:
– Equipped with electromagnetic control of the blade speed and with aerodynamic clutch of the blades. The blades are made of glass fiber reinforced
3 phase brushless wind generator with permanent magnets. The wind generator body is made of aluminium alloy and rotor is stainless steel
– Pole connection through a flange or a clamp and bolt
– PWM electric signal or low voltage charge function
– Available hybrid solar-wind controller
Also available: HY-400L e HY-600L versions
Applications: Stand-alone systems, solar-wind hybrid systems, etc
Warranty: 3 years
Certifications: ISO9001:2008; CE; RoHS; ETL

No data found.

Model

HY-400L

HY-600L

Part No.

68511K

68643D

Nominal power

400 W

600 W

Peak power

500 W

750 W

Voltage

12/24 V DC

24/48 V DC

Start-up wind speed

2 m/s (4.5 mph)

2 m/s (4.5 mph)

Max wind speed

50 m/s (110 mph)

50 m/s (110 mph)

Nominal rotor speed

750 rpm

750 rpm

Nominal charge current

33.3/16.7 A

25/12.5 A

Energy delivered (average
month wind speed 5,5 m/s)

82 kWh/month

91 kWh/month

Rotor Diameter

1,55 m

1,75 m

Area swept

1,89 m²

2,4 m²

Dry weight kg (lbs)

22 (48.5)

25 (55.12)
