EM SERIES MARINE GENERATORS: 3000 RPM (3.2 to 9.0 Kw)
Marine generators Features
• Connection on one side
• Electronic management
• Easy maintenance
• Local and remote control
• Reduced dimensions and noise level
Marine generator’s standard equipment
• Sound proof canopy: Made entirely from marine grade aluminum (LEGA 5754 H111) powder coated.

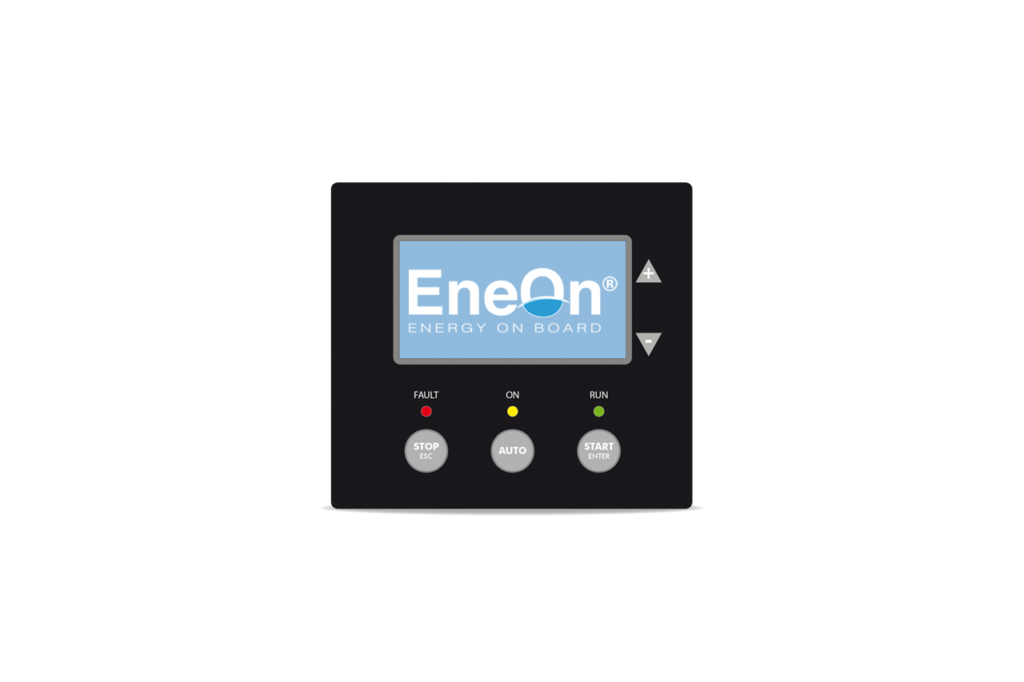

• EOB® control panel: Waterproof control panel for engine protection with LCD display. Dimensions on the dashboard 96×96 mm, supplied separately for all the generators. Selector on board the generators for manual start bypassing the control panel.
• Generating set brackets: 4 steel brackets to attach the generator to the floor of the boat.
• Emergency button: Emergency button positioned on the Generating Set to allow for the immediate shutdown in case of danger or damage.
Marine generators optional equipment
• Silenced muffler kit
• Sea water intake kit
• Siphon breaker
• Water gas separator
• Electrical fuel pump
• Diesel prefilter with water separator
• Diesel water separator
• Manual oil extraction pump
Standards applied
• CE certified
• Power: ISO 8528
• Directive Machinery: 2006/42/CE – 89/392CEE – 98/37/CE
• Electromagnetic compatibility: 2004/108/CE – 89/336/CEE – 93/68/CEE
• Acoustic emission: 2005/88/CE – 2000/14/CE (sound guard version only)
Available Models: (230 V – 50Hz – 1Ph)
EM320 (3.2 Kw), EM600 (6.0 Kw), EM900 (9.0 Kw)
| Label | Value |
|---|---|
| Max power kVA | 3.2 (EM320); 6.0 (EM600); 9.0 (EM900) |
| Phase | Single Phase |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Noise level db(A) @7m | 54 |
| Rpm | 3000 |
EM Series - features
Model | EM320 | EM600 | EM900 |
|---|---|---|---|
Max power kVA (kW) | 3.2 (3.2) | 6.0 (6.0) | 9.0 (9.0) |
Phase | Single phase | Single phase | Single phase |
Current (A) | 14.00 | 26.00 | 40.00 |
Voltage | 230V | 230V | 230V |
Frequency | 50 Hz | 50 Hz | 50 Hz |
Engine cooling system | Sea water/air | Heat exchanger | Heat exchanger |
Noise level db(A) @ 7 meters | 54 | 54 | 54 |
Engine model | YANMAR L70N | KUBOTA Z482 | KUBOTA D722 |
Rpm | 3000 | 3000 | 3000 |
No. of cylinders | 1 | 2 | 3 |
Dimensions soundproof versions mm (") | 580x425x525 (22.8x16.7x20.7) | 650x480x540 (25.6x18.9x21.3) | 800x500x565 (31.5x19.7x22.2) |
Weight soundproof version kg (lbs) | 99 (218.3) | 152 (335.1) | 216 (476.2) |
EM Series - features
| Model | Part Number | Description |
|---|---|---|
| EM320 | 24705B | Single phase Eneon Generator - Max power 3.2 kVA |
| EM600 | 24706D | Single phase Eneon Generator - Max power 6.0 kVA |
| EM900 | 24707F | Single phase Eneon Generator - Max power 9.0 kVA |
| EM series - Eneon generators accessories | ||
| Sea water kit | 22662Z | Sea water kit for EM320 generator |
| Sea water kit | 22629B | Sea water kit for EM600, EM900 generators |
| Exhaust kit | 22630K | Exhaust kit for EM series generators |
| Separator | 22631M | Water/gas separator for EM series generators |
| Syphon breaker | 22657G | Syphon breaker for EM series generators |
