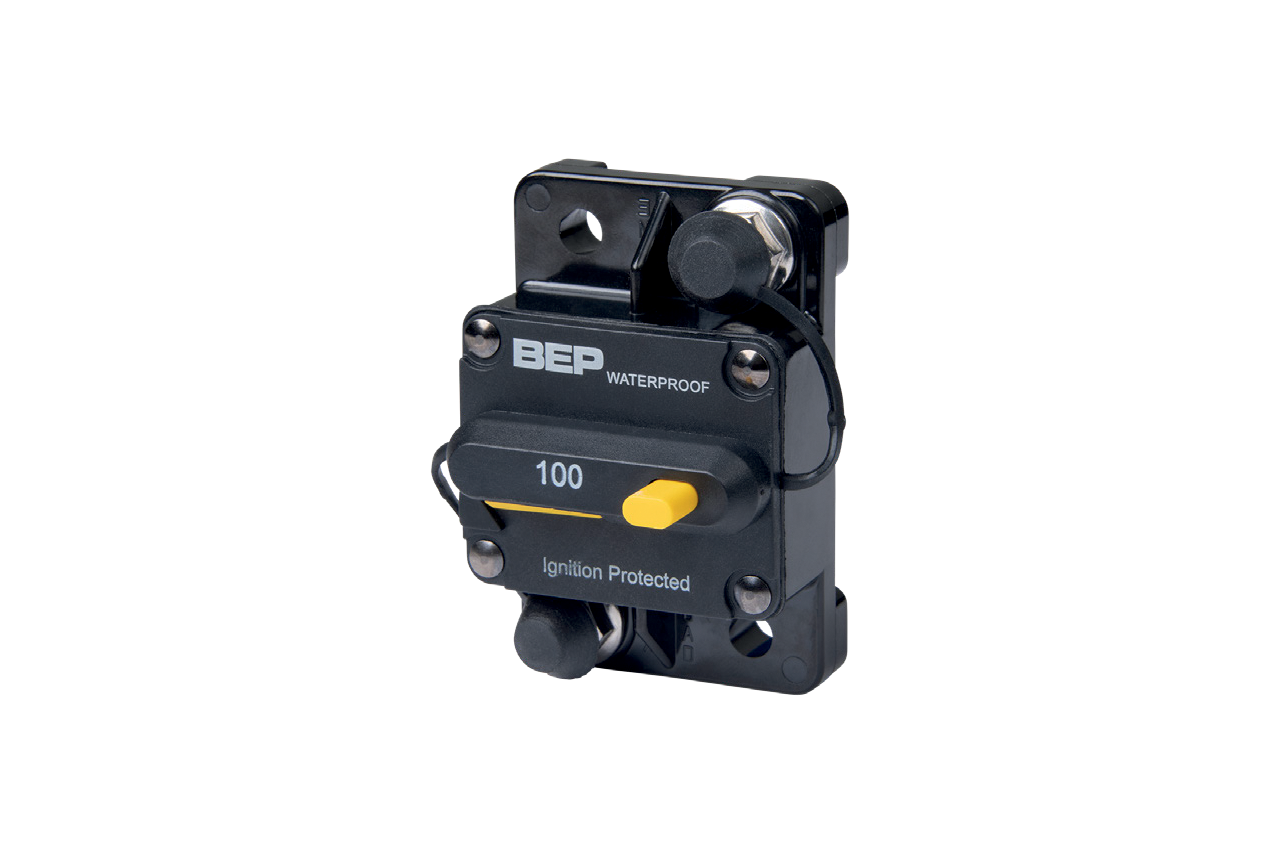

Single pole thermal type breakers
Applications: Typically used in auxiliary and accessory circuits – trucks, buses, RV’s and marine applications. Others might include battery charges and DC audio systems.
Series 184 and 185 are sealed for engine compartment and bilge area applications.
Series 184 and 185 have a unique reset mechanism which provides visible indication of tripped condition.
Also available in FM version
Label | Value |
---|---|
Reset | Manual or switchable |
Ratings | 50 Amp to 150 Amp; 30V DC |
Interrupt capacity | 3000 Amp |
Operating temperature | – 32° C to 82° C |
Storage temperature | – 32° C to 150° C |
Mounting | Panel or surface |
Approvals | complies with SAE J 1625, J1171 and UL1500 (Ignition Protected) |
BUSSMANN Single pole thermal type breakers
MODEL |
SKU |
RATING |
SURFACE MOUNTING |
PANEL MOUNTING |
---|---|---|---|---|
MANUAL RESET |
||||
184 050P-01-1 |
65382K |
50 |
- |
X |
184 060P-01-1 |
65383M |
60 |
- |
X |
184 080P-01-1 |
23601H |
80 |
- |
X |
184 100F-01-1 |
63160E |
100 |
X |
- |
184 100P-01-1 |
63162J |
150 |
X |
- |
184 150F-01-1 |
63161G |
|||
184 150P-01-1 |
63163L |
150 |
- |
X |
SWITCHABLE RESET |
||||
185 050P-01-1 |
63927S |
50 |
- |
X |
185 070P-01-1 |
65385S |
70 |
- |
X |
185 080P-01-1 |
63928U |
80 |
- |
X |
185 100P-01-1 |
63166T |
100 |
- |
X |
185 120P-01-1 |
23602K |
120 |
- |
X |
185 135P-01-1 |
23603M |
135 |
- |
X |
185 150P-01-1 |
23604P |
150 |
- |
X |
