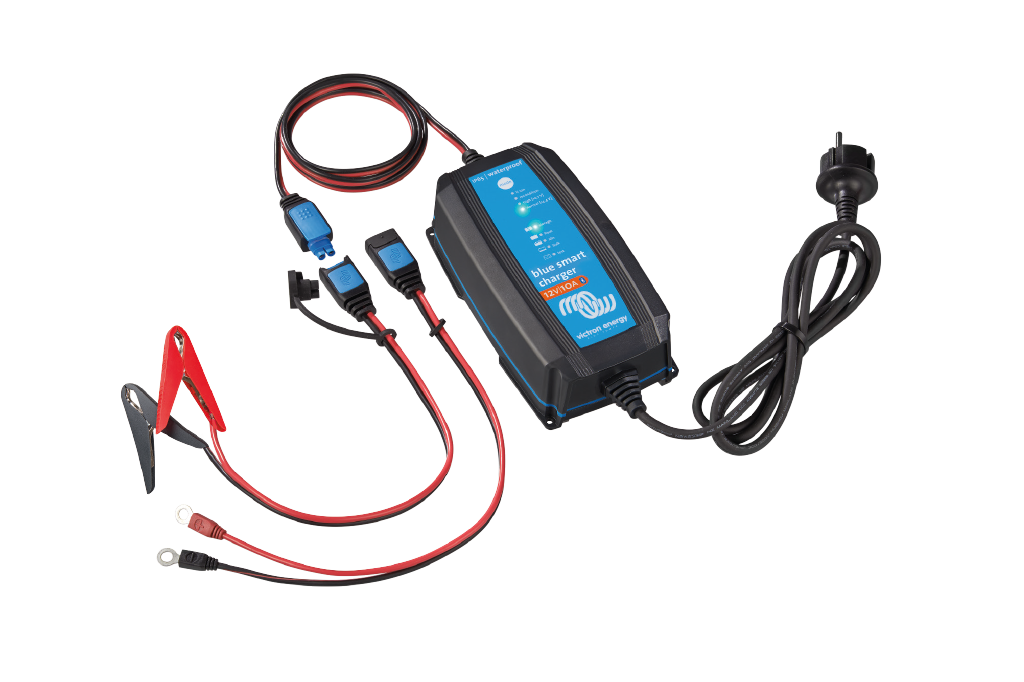

BLUE SMART IP65 SERIES WITH DC CONNECTOR
• Water, dust and chemical resistant
• Seven step smart charge algorithm
• Recovery of fully discharged “dead” batteries
• Automatic power supply function
• Automatic compensation for high or low temperature
• Several other battery life enchancing features
• Li-ion battery mode
• Bluetooth built-in function for smartphone monitoring
No data found.
Technical specifications
| Model |
Part No. |
Input voltage range |
Charge voltage |
Charge current |
Dimensions HxWxD mm (") |
Weight kg (lbs) |
|---|---|---|---|---|---|---|
|
6V/12V-1,1A IP65 |
24989V |
180-265V / 45-60Hz |
7,2 - 14,4 VDC |
1,1 A |
38x64x153 (1.5x2.5x6) |
0,4 (0.9) |
|
12/4 IP65S |
21654V |
180-265V / 45-60Hz |
14,4V DC |
4A |
47x95x190 (1.8x3.7x7.5) |
0,8 (1.8) |
|
12/5 IP65S |
21655X |
180-265V / 45-60Hz |
14,4V DC |
5A |
45x81x182 (1.7x3.2x7.2) |
0,6 (1.3) |
|
12/7 IP65S |
21656Z |
180-265V / 45-60Hz |
14,4V DC |
7A |
47x95x190 (1.8x3.7x7.5) |
0,8 (1.8) |
|
12/10 IP65S |
21657B |
180-265V / 45-60Hz |
14,4V DC |
10A |
60x105x190 (2.4x4.1x7.5) |
0,9 (2.0) |
|
12/15 IP65S |
21658D |
180-265V / 45-60Hz |
14,4V DC |
15A |
60x105x190 (2.4x4.1x7.5) |
0,9 (2.0) |
|
12/25 IP65S |
23053C |
180-265V / 45-60Hz |
14,4V DC |
25A |
75x140x240 (2.9x5.5x9.5) |
1,9 (4.2) |
|
24/5 IP65S |
21659F |
180-265V / 45-60Hz |
28,8V DC |
5A |
47x95x190 (1.8x3.7x7.5) |
0,8 (1.8) |
|
24/8 IP65S |
21660P |
180-265V / 45-60Hz |
28,8V DC |
8A |
60x105x190 (2.4x4.1x7.5) |
0,9 (2.0) |
|
24/13 IP65S |
23054E |
180-265V / 45-60Hz |
28,8V DC |
13A |
47x95x190 (1.8x3.7x7.5) |
0,8 (1.8) |
