VERATRON VMH35D DIPLAY CARACTÉRISTIQUES • Écran couleur IBN hybride, TFT 1,44 » et segments fixes (zone active Ø 83mm) fixation […]

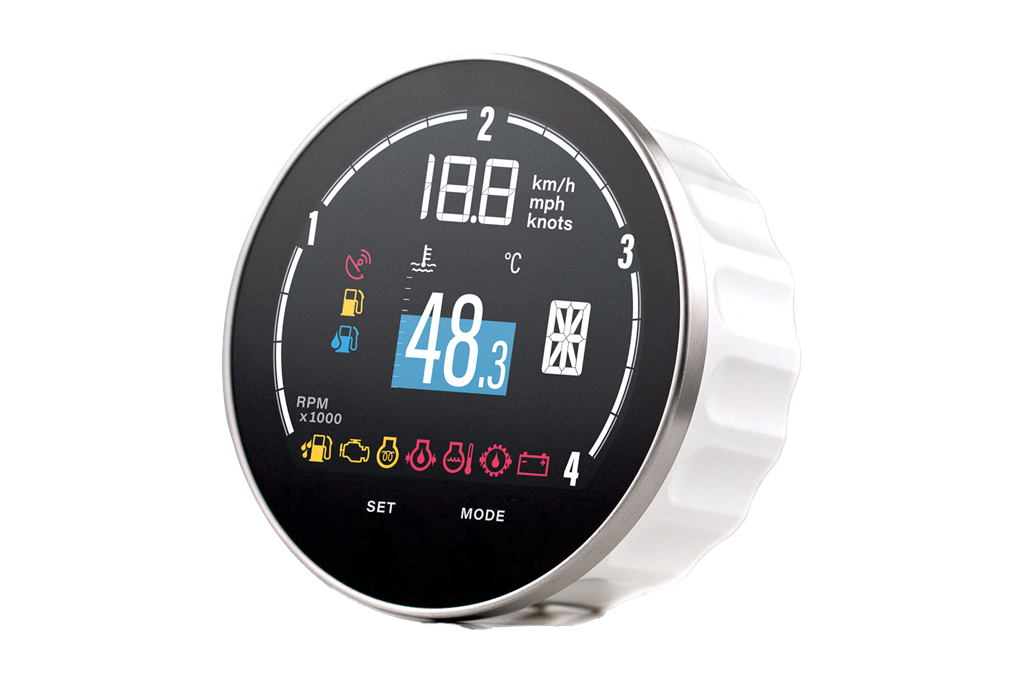

VERATRON VMH35D DIPLAY

CARACTÉRISTIQUES

• Écran couleur IBN hybride, TFT 1,44 » et segments fixes
(zone active Ø 83mm) fixation optique
• Lentille frontale en verre minéral
• Clavier en silicone avec 2 boutons
• Cadre en acier inoxydable brossé
• Alimentation 9 -36 Volt (12/24 nominal)
• Température de fonctionnement : -30°C +80°C
• Température de stockage : -40°C +85°C
• Protection : IPX7 à l’avant et à l’arrière
• Double CAN (J1939 et NMEA 2000)
• Sortie EasyLink pour les instruments satellites VMH 14
• Écran d’accueil avec logo personnalisable

AFFICHAGE DE LA PRÉSENTATION

• 10 indicateurs dédiés aux applications diesel
• Échelle de révolution du moteur 3000 4000 RPM
• Nouvelle génération d’écran couleur hybride lisible en plein soleil
• Entrée intelligente du capteur de batterie (IBS)
• Passerelle NMEA 2000® intégrée
• Récepteur GNSS haute performance intégré
• Certifié NMEA 2000

VARIANTES DE PRODUITS

VMH 35-D (B00171101 – 25402M) Afficheur de moteur diesel eb. GPS intégré, interface NMEA 2000 avec passerelle, affichages et alarmes spécifiques aux applications marines (Profondeur, COG, SOG, etc.)

VMH 35-D sans GPS (B00171201 – 25401K) Afficheur pour moteurs diesel eb. GPS non intégré (deuxième station ou deuxième moteur), interface NMEA 2000 avec passerelle, affichages et alarmes spécifiques aux applications marines (Profondeur, COG, SOG, etc.)

Label Value
DATI TECNICI
Tensione di funzionamento 12V
Intervallo di tensione 9-16 V
Classe di protezione IP X7
Infiammabilità Conforme UL94
Consumo energetico ≤ 15 mA (normal mode); ≤ 120 μA (sleep mode);
Dimensioni Ø 100 (Ø 85mm montaggio)
Area attiva Ø 83 mm (display con sigillatura ottica)
Display centrale 1.44”, 128 x 128 Pixel
Lente Vetro minerale
Pulsanti 2 pulsanti in silicone
Ghiera acciaio inox spazzolato
Temperatura operativa da - 20°C a 60°C
Temperatura di immagazzinaggio da - 30°C a 80°C
Prese Molex MX-150, 12 pins; DeviceNet M12, 5 pins;

VMH 35 - Dati GPS

Navigation system

GPS, GLONASS, Galileo

Update rate

10 Hz

Channels

72

Tracking sensitivity

-165 dBm

Time to first fix (hot
start)

1 s

Time to first fix (cold
start)

30 s

Position accuracy

2.5 m

Velocity accuracy

0.05 m/s

Heading accuracy

0.3 °

VMH 35 - Dati GPS

Model Part Number Description
B00171101 25402M VMH 35-D
B00171201 25401K VMH 35-D w/o GPS
